Reading-notes

Fixed Width Layouts :

• Fixed width layout designs do not change size as the user increases or decreases the size of their browser window. Measurements tend to be given in pixels.

Some of Advantages : ● Pixel values are accurate at controlling size and positioning of elements.

● The designer has far greater control over the appearance and position of items on the page than with liquid layouts.

Some of Advantages : ● You can end up with big gaps around the edge of a page.

● If the user’s screen is a much higher resolution than the designer’s screen, the page can look smaller and text can be harder to read.

Liquid Layouts:

• Liquid layout designs stretch and contract as the user increases or decreases the size of their browser window. They tend to use percentages.

Some of Advantages :

● Pages expand to fill the entire browser window so there are no spaces around the page on a large screen.

● If the user has a small window, the page can contract to fit it without the user having to scroll to the side.

some of Disadvantages :

● If you do not control the width of sections of the page then the design can look very different than you intended, with unexpected gaps around certain elements or items squashed together.

● If the user has a wide window, lines of text can become very long, which makes them harder to read.

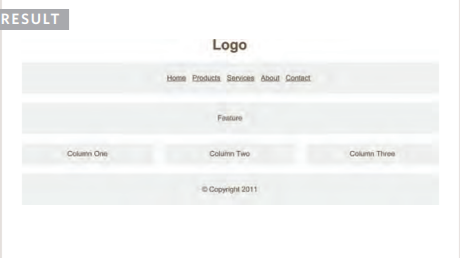

A Fixed Width Layout:

• To create a fixed width layout, the width of the main boxes on a page will usually be specified in pixels (and sometimes their height, too)

• The fixed width layout will stay the same width no matter what size the browser window is, whereas the liquid layout will stretch (or shrink) to fill the screen.

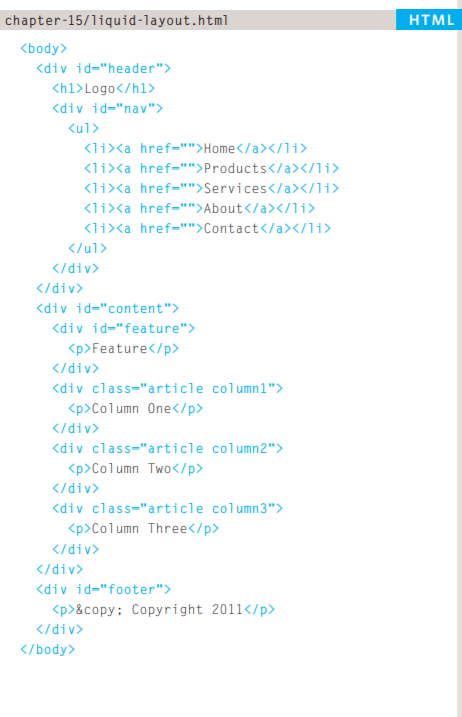

• The HTML is the same for both the fixed width layout.

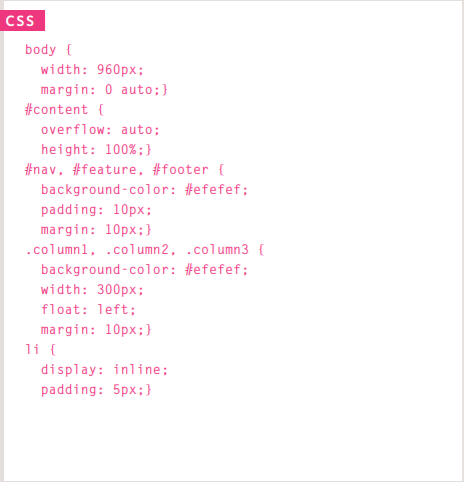

• The rule for the < body> element is used to fix the width of the page at 960 pixels, and it is centered by setting the left and right margins to auto.

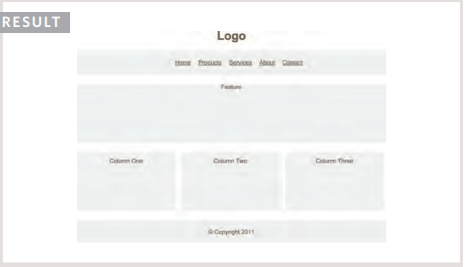

A Liquid Layout :

• The liquid layout uses percentages to specify the width of each box so that the design will stretch to fit the size of the screen.

note caption of example:

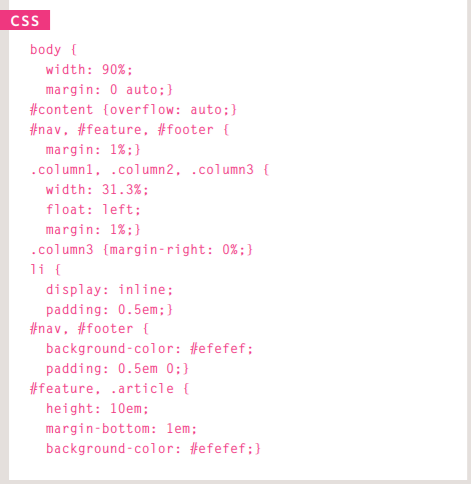

• There is a rule on the < body> element to set the width of the page to 90% so that there is a small gap between the left and right-hand sides of the browser window and the main content.

so at css ..

• The three columns are all given a margin of 1% and a width of 31.3%. This adds up to 99.9% of the width of the < body> element, so some browsers might not perfectly align the right-hand side of the third column with other elements on the page.

Layout Grids :

• Composition in any visual art (such as design, painting, or photography) is the placement or arrangement of visual elements — how they are organized on a page. Many designers use a grid structure to help them position items on a page, and the same is true for web designers.

while a grid might seem like a restriction, in actual fact it:

● Creates a continuity between different pages which may use different designs.

● Helps users predict where to find information on various pages.

● Makes it easier to add new content to the site in a consistent way.

● Helps people collaborate on the design of a site in a consistent way.

Possible Layouts:

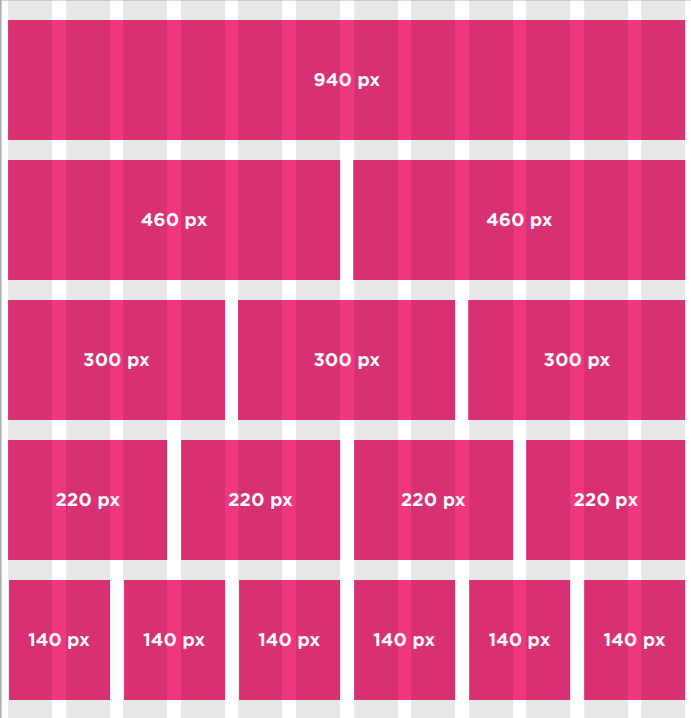

960 Pixel wide 12 Column Grid
